Name: MSI PRO B650M-A WIFI | Placa Base
Brand: MSI
SKU: pro-b650m-a-wifi-placas-base
Availability: InStock

Cuenta

Su carrito (0)

Home Tienda

MSI PRO B650M-A WIFI | Placa Base

1 / 6

MSI PRO B650M-A WIFI | Placa Base

PRO B650M-A WIFI

Soporta procesadores de escritorio AMD Ryzen™ 7000 Series de PC de Sobremesa
Soporta memorias DDR5, Dual Channel DDR5 7200+MHz (OC)
Diseño de Energía mejorado: 8+2+1 Duet Rail Power System, 8 pin +4 pines conectores de alimentación de la CPU, Core Boost, Memory Boost
Soluciones Térmicas Premium: El pad de 7W/mK, el pad térmico de estrangulamiento adicional y el M.2 Shield Frozr están diseñados para un sistema de alto rendimiento y trabajos ininterrumpidos.
PCB de alta calidad: PCB de 6 capas fabricadas con cobre engrosado de 2oz
Experiencia de juego increíblemente rápida: ranuras PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr
Solución LAN de 2.5G con Wi-Fi 6E: solución de red mejorada para un uso profesional. Ofrece una conexión de red segura, estable y rápida
AUDIO BOOST: premia a tus oídos con una calidad de sonido de calidad de estudio para una experiencia gaming más inmersiva

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC) 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ Support HDMI^TM2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) (The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek^® 8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

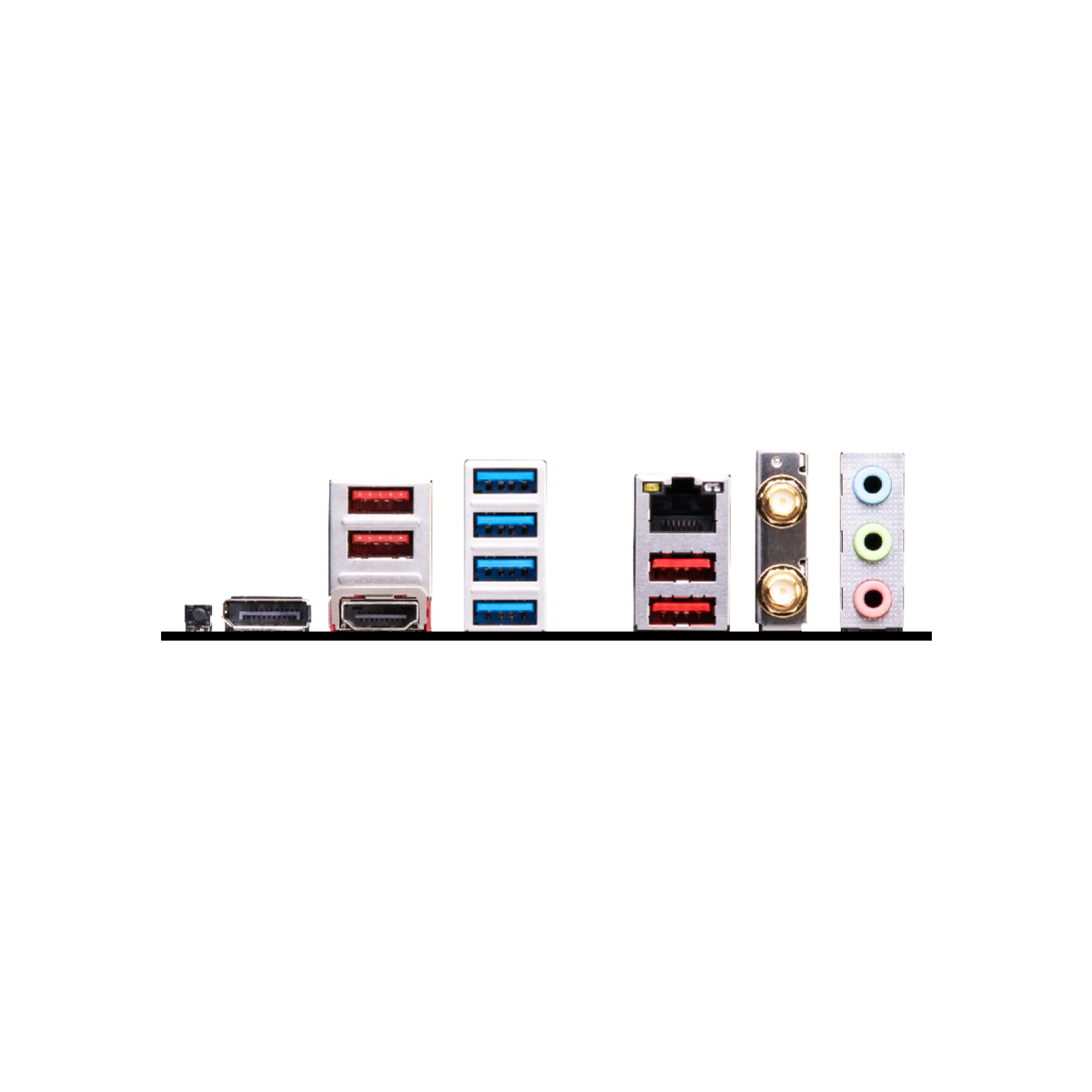

BACK PANEL PORTS	USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
BOX CONTENT
PCB Info	mATX 243.84mmx243.84mm

$205.96

MSI PRO B650M-A WIFI | Placa Base—

$205.96

MSI PRO B650M-A WIFI | Placa Base—

$205.96

Información del producto

Envío y devoluciones

Description

PRO B650M-A WIFI

Soporta procesadores de escritorio AMD Ryzen™ 7000 Series de PC de Sobremesa
Soporta memorias DDR5, Dual Channel DDR5 7200+MHz (OC)
Diseño de Energía mejorado: 8+2+1 Duet Rail Power System, 8 pin +4 pines conectores de alimentación de la CPU, Core Boost, Memory Boost
Soluciones Térmicas Premium: El pad de 7W/mK, el pad térmico de estrangulamiento adicional y el M.2 Shield Frozr están diseñados para un sistema de alto rendimiento y trabajos ininterrumpidos.
PCB de alta calidad: PCB de 6 capas fabricadas con cobre engrosado de 2oz
Experiencia de juego increíblemente rápida: ranuras PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr
Solución LAN de 2.5G con Wi-Fi 6E: solución de red mejorada para un uso profesional. Ofrece una conexión de red segura, estable y rápida
AUDIO BOOST: premia a tus oídos con una calidad de sonido de calidad de estudio para una experiencia gaming más inmersiva

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC) 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ Support HDMI^TM2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) (The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek^® 8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
BOX CONTENT
PCB Info	mATX 243.84mmx243.84mm
